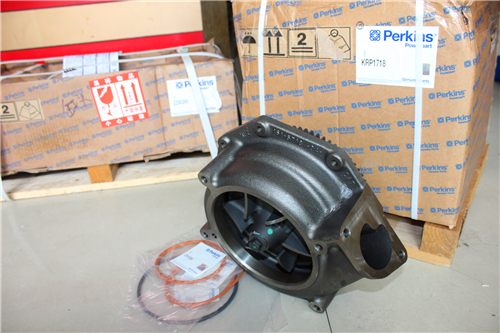

威爾遜柴油發電機組2206配件CH12887水泵

項序 零配件號碼 最近的零配件號碼  描述

1 CH12887 1 CH12887 水泵

(1) 半徑/CH12887 1 半徑/CH12887 水泵

19 CH10147 1 CH10147 密封墊O形圈

20 CH10248 2 CH10248 螺拴

21 CH11819 2 CH11819 墊圈

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 CH12887 1 CH12887 WATER PUMP

(1) R/CH12887 1 R/CH12887 WATER PUMP - EXCHANGE

19 CH10147 1 CH10147 SEAL - O RING

20 CH10248 2 CH10248 BOLT

21 CH11819 2 CH11819 WASHER

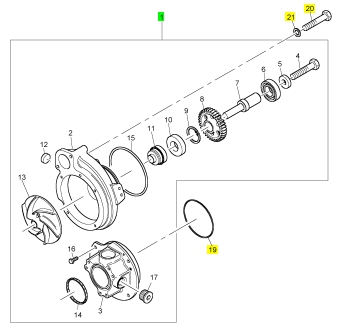

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

2 1 WATER PUMP HOUSING

3 1 COVER

4 CH12612 1 CH12612 BOLT

5 CH12604 1 CH12604 WASHER

6 CH10004 2 CH10004 BALL BEARING

7 CH12609 1 CH12609 SHAFT

8 CH12610 1 CH12610 WATER PUMP GEAR

9 CH12614 1 CH12614 RETAINER

10 CH12613 1 CH12613 SEAL

11 CH12889 1 CH12889 SEAL - WATER PUMP

12 CH11545 1 CH11545 PLUG

13 CH12607 1 CH12607 IMPELLER

14 CH12530 1 CH12530 SEAL

15 CH12528 1 CH12528 SEAL - O RING

16 CH12527 4 CH12527 BOLT

17 CH11375 1 CH11375 PLUG

18 CH10119 1 CH10119 SEAL - O RING
