威爾遜柴油發電機組油底殼CH12118 密封墊

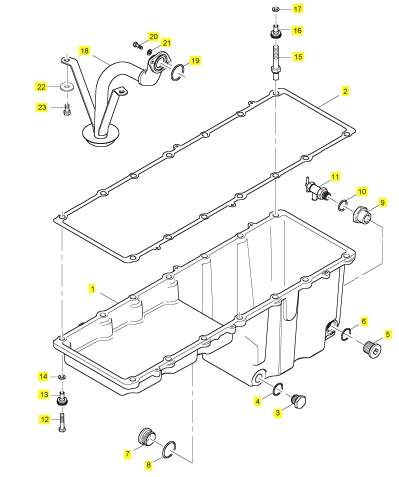

項序 零配件號碼 最近的零配件號碼  描述

1 CH12117 1 CH12117 油底殼

2 CH12118 1 CH12118 密封墊 -油底殼

3 CH11571 1 CH11571 排泄堵塞

4 CH11573 1 CH11573 密封墊O形圈

5 T400251 1 T400251 堵塞

6 T400544 1 T400544 密封墊O形圈

7 T400251 1 T400251 堵塞

8 T400544 1 T400544 密封墊O形圈

9 T401275 1 T401275 承接器

10 T406205 1 T406205 密封墊O形圈

11 2461 A503 1 2461 A503 關閉閥

12 CH12124 13 CH12124 螺拴

13 CH12119 13 CH12119 密封墊

14 CH10113 13 CH10113 墊圈

15 CH12657 1 CH12657 圖釘

16 CH12119 1 CH12119 密封墊

17 CH10113 1 CH10113 墊圈

18 T400250 1 T400250 管 - 油的吸入

19 CH10098 1 CH10098 密封墊O形圈

20 CH10041 2 CH10041 螺拴

21 T401636 2 T401636 墊圈

22 CH10099 2 CH10099 墊圈

23 CH12122 2 CH12122 螺拴

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 CH12117 1 CH12117 SUMP

2 CH12118 1 CH12118 GASKET - SUMP

3 CH11571 1 CH11571 DRAIN PLUG

4 CH11573 1 CH11573 SEAL - O RING

5 T400251 1 T400251 PLUG

6 T400544 1 T400544 SEAL - O RING

7 T400251 1 T400251 PLUG

8 T400544 1 T400544 SEAL - O RING

9 T401275 1 T401275 ADAPTOR

10 T406205 1 T406205 SEAL - O RING

11 2461A503 1 2461A503 SHUT OFF VALVE

12 CH12124 13 CH12124 BOLT

13 CH12119 13 CH12119 SEAL

14 CH10113 13 CH10113 WASHER

15 CH12657 1 CH12657 STUD

16 CH12119 1 CH12119 SEAL

17 CH10113 1 CH10113 WASHER

18 T400250 1 T400250 PIPE - OIL SUCTION

19 CH10098 1 CH10098 SEAL - O RING

20 CH10041 2 CH10041 BOLT

21 T401636 2 T401636 WASHER

22 CH10099 2 CH10099 WASHER

23 CH12122 2 CH12122 BOLT
