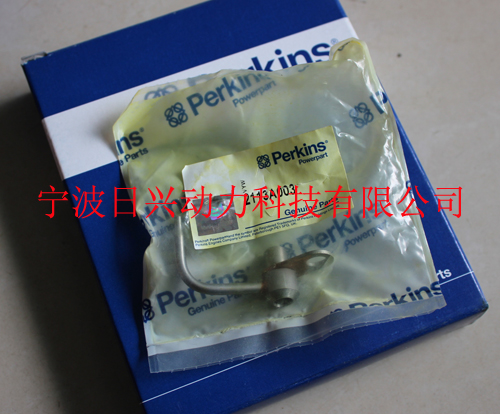

Piston cooling jets

2800

To remove and to fit

Special requirements

Operation 4-

To remove

  Remove oil pump, Operation 0.

2 Use the engine turning tool, CH48, to turn the crankshaft in a clockwise direction (as seen from the front

of the engine) to obtain access to the relevant piston cooling jet.

  Remove the bolt which retains the cooling jet and remove the cooling jet from the engine.

4  Repeat steps 2 and  for the cooling jets which remain.

To fit

  Before a piston cooling jet is fitted to the engine, use the jet alignment tool, GE50004, to ensure that the

direc tion of the nozzles is correct.

Caution: If, when fitted to the alignment tool, a nozzle does not align correctly with the relevant dowel, discard

the c ooling jet; do NOT fit a damaged or distorted cooling jet to the engine.

2 Carefully fit the piston cooling jets to the engine, ensure that the nozzles of the cooling jets are not damaged

or distorted during the operation. Turn the cranks haft clockwise (as seen from the front of the engine) as

necessary to obtain access to the relevant positions.

  Fit the oil pump, Operation 0. ，珀金斯404缸蓋,杭州鉑金斯發動機配件,ERKINS 403D配件,沃爾沃TAD720VE位置傳感器,沃爾沃TAD720VE電噴柴油發動機配件,沃爾沃TAD720VE傳感器,三菱 發電機機油濾清器
